Snapshot

Location
Durango State, Mexico

Land Area
1,866 hectares

Property Description
Gold project located 80km (115km by road) from Velardeña

Metals
Gold and silver

Ownership
100% owned; 2 claims

Project Stage
PEA completed April 2020; Resource Estimate dated Jan. 26, 2017

Current Activities & Work
Began drill program (July 2020) in preparation for projected 2021 production

Permitting
Submitted application for environmental & mining permits for open-pit operation

Overview

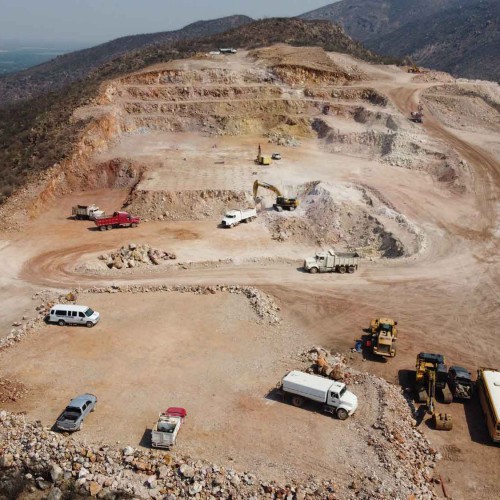

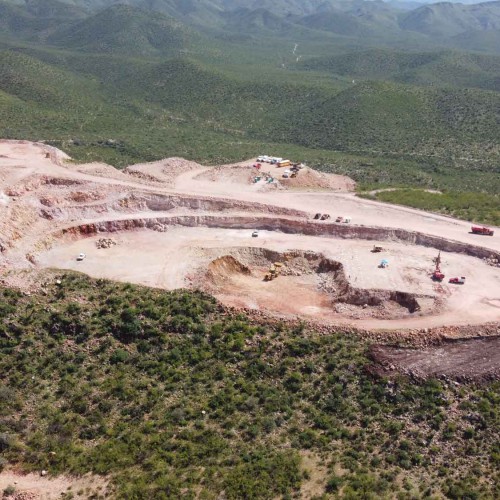

Rodeo is a 1,866-hectare gold project located in Durango State, Mexico approximately 80 kilometers west of the Company's Velardeña Properties and processing mills. In April 2020, we announced completion of a Preliminary Economic Assessment for Rodeo (Resources Engineering, NI 43-101 Technical Report: Preliminary Economic Assessment, Rodeo Project, April 1, 2020). The PEA contemplates an open-pit mining operation generating life of mine after-tax free cash flow of roughly $25 million and an NPV8 of $22.5 million over a 9-quarter life of mine. Golden anticipates (subject to timely receipt of permits) bringing this property into production in 2021, transporting its material to our Velardeña Properties oxide mill for processing after Hecla vacates our oxide mill (see Velardeña pages for additional information about the Hecla lease). Rodeo’s total pre-production costs as outlined in the PEA are a low $1.5 million.

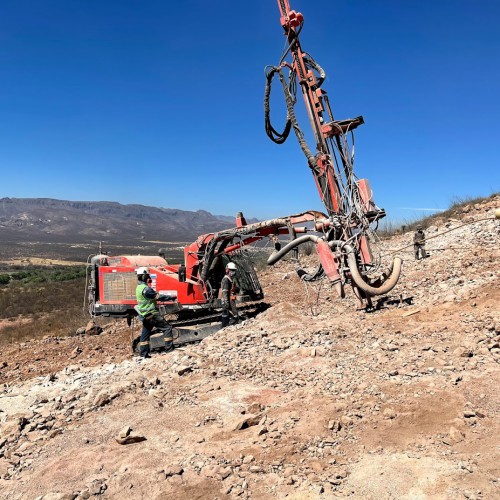

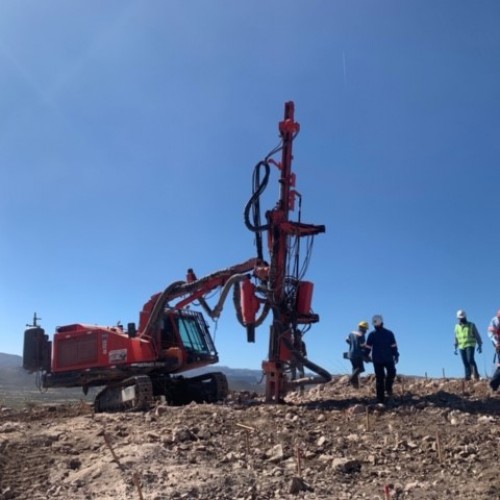

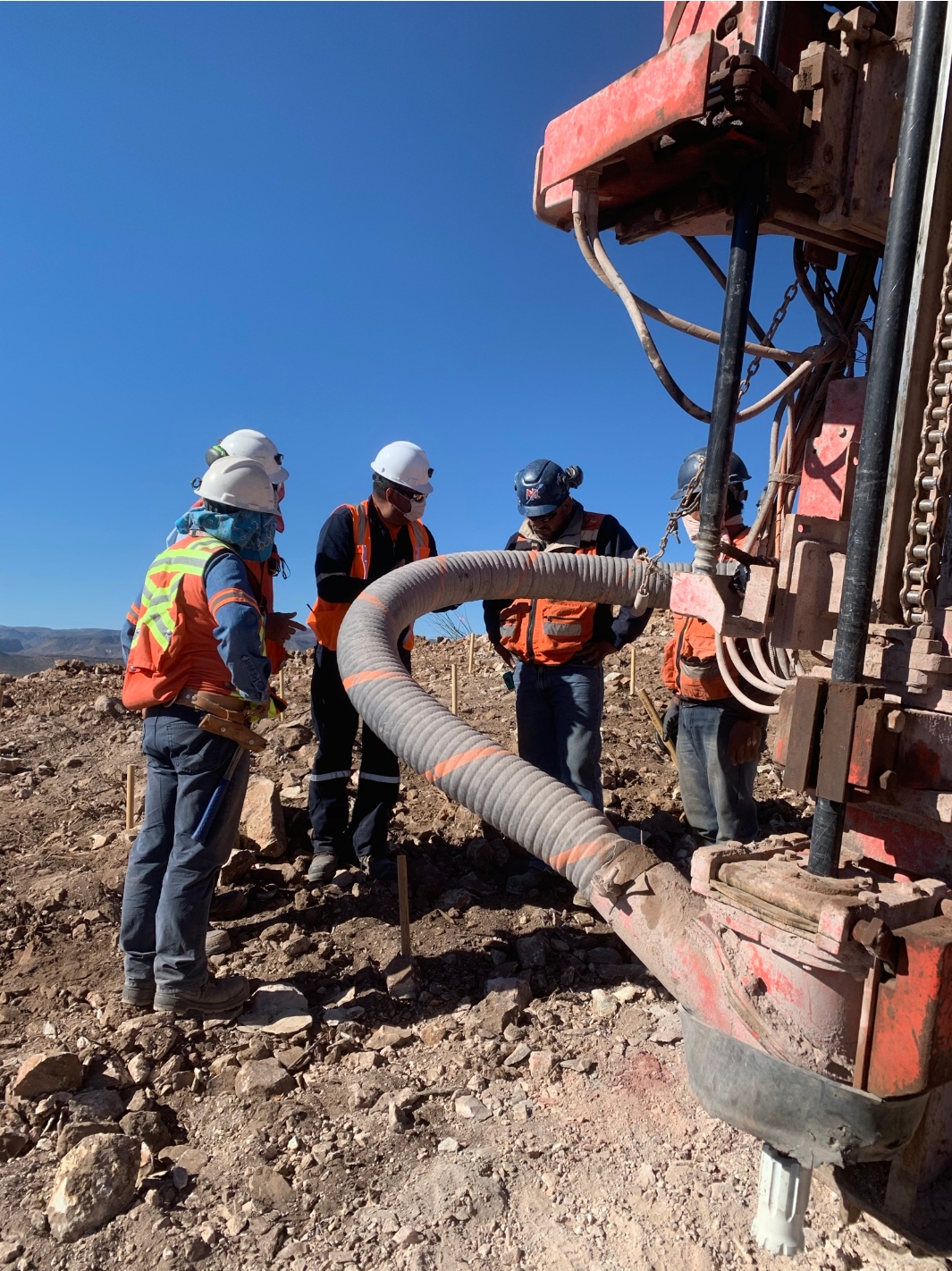

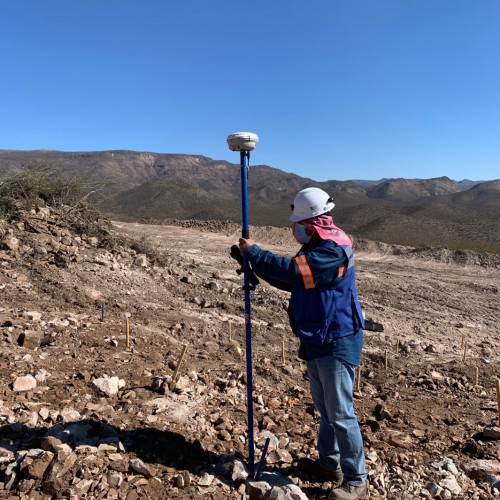

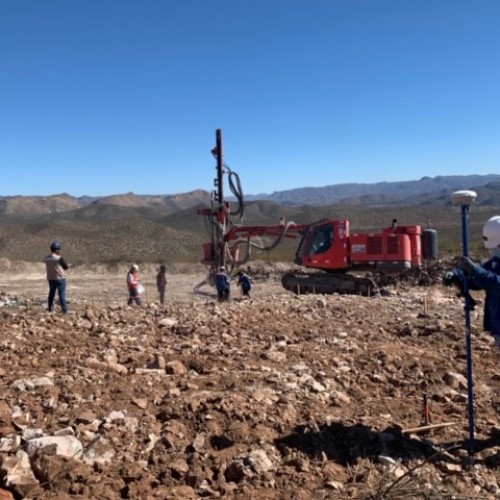

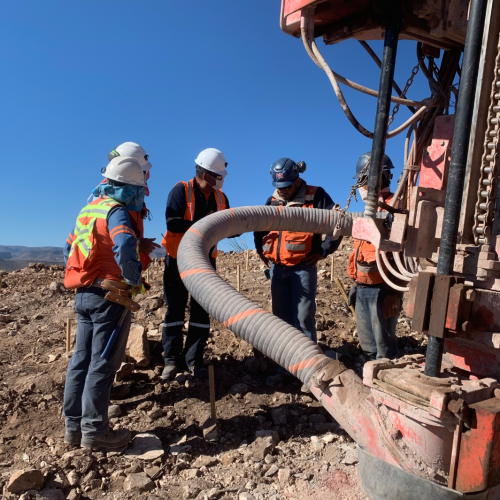

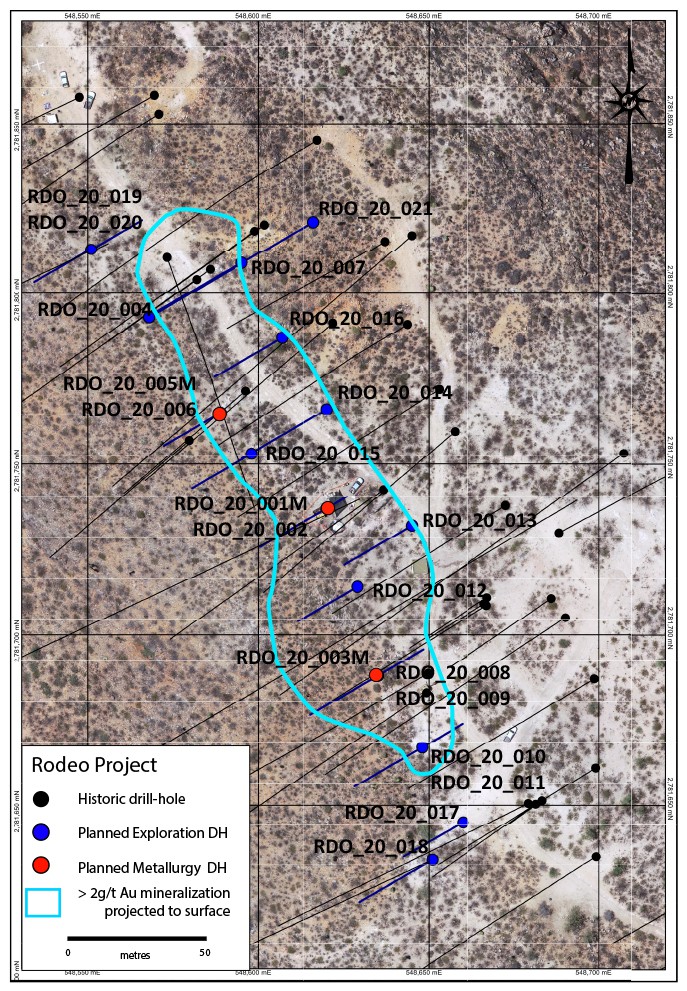

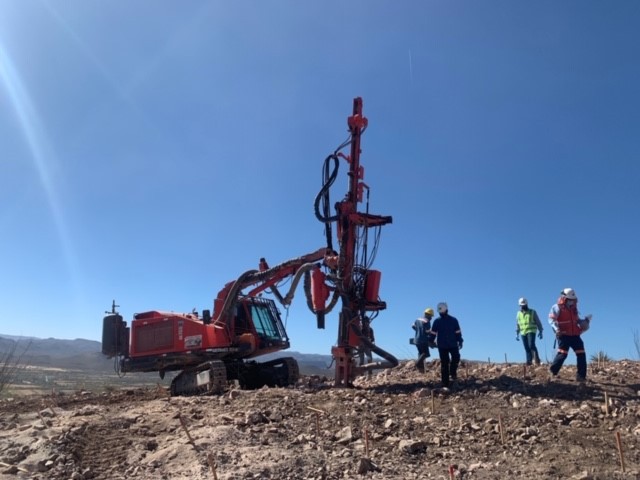

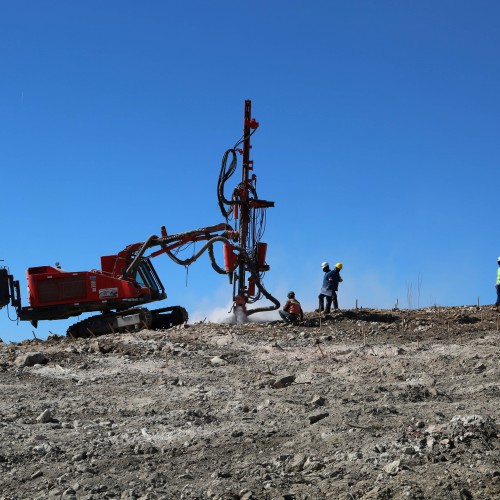

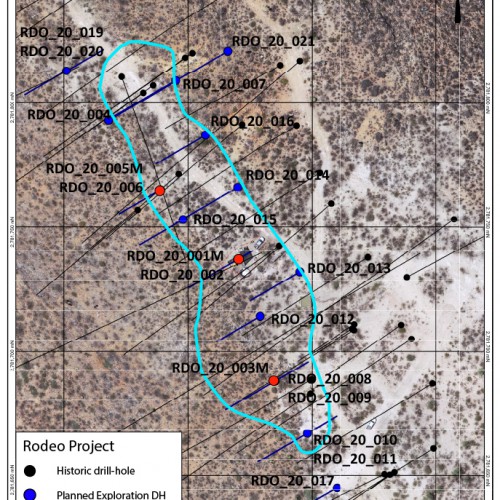

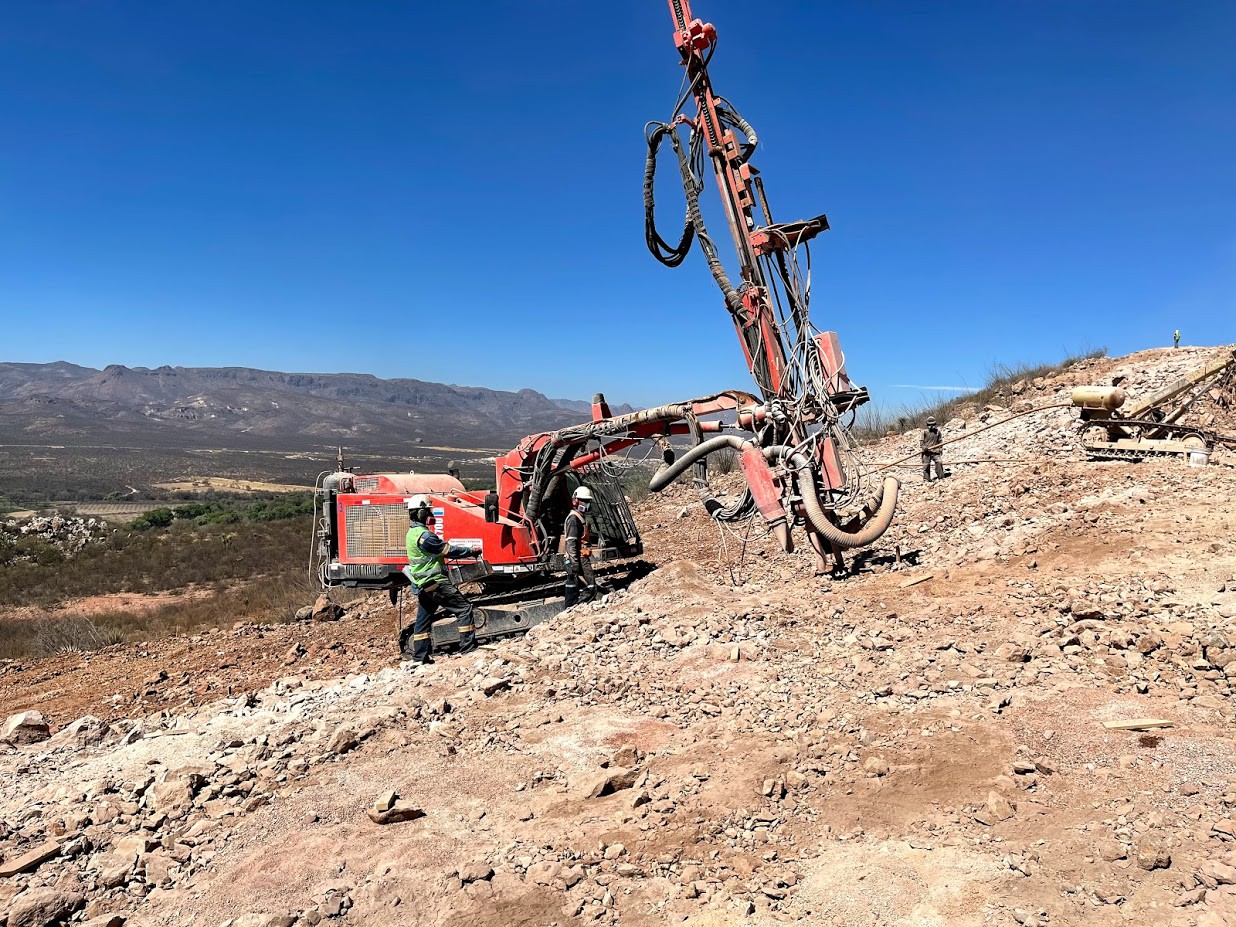

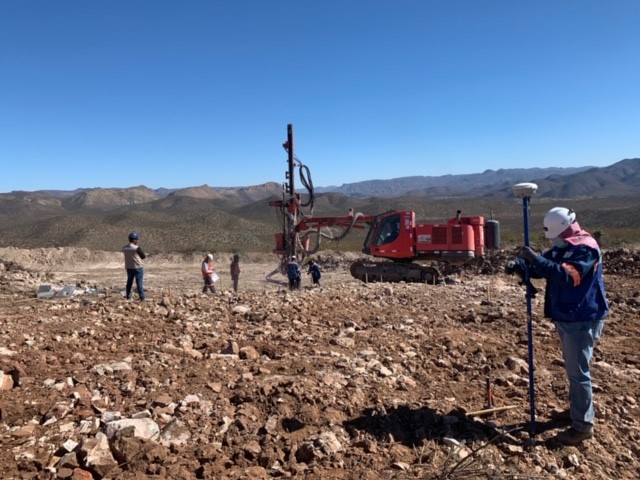

In early July 2020, we began a drill program (~20 holes) designed to better define the high-grade core of the deposit and to provide sample material for metallurgical and geotechnical testing. Separately, we have begun the process of obtaining the required mining and environmental permits for an open pit mining operation.

Preliminary Economic Assessment (2020)

Independent engineering firm Mineral Resources Engineering has prepared the PEA for Golden Minerals in accordance with Canadian National Instrument 43-101 “Standards of Disclosure of Mineral Projects” (“NI 43-101”). The resource used for the PEA was developed in accordance with Canadian NI 43-101 by the independent engineering firm Tetra Tech (report dated January 26, 2017:  NI 43-101 Technical Report; Mineral Resource Estimate; Rodeo Project; Rodeo, Durango, Mexico). The PEA assumes prices of $1,622/oz gold and $14.38/oz silver.

Preliminary results of the economic analysis are shown below in after-tax U.S. Dollars. The complete PEA will be published on SEDAR and posted to our website within 45 days of April 15, 2020.

  • After-tax net present value (“NPV”): (US)$22.5 million at an 8% discount rate
  • Life of Mine (“LOM”) after-tax free cash flow:  $24.9 million
  • Pre-production development time:  1 quarter (3 months)
  • LOM:  9 quarters
  • Total pre-production costs, including capital and contingency:  $1.5 million
  • After-tax payback period:  during the first production quarter
  • LOM contained production:  41 Koz Au; 118 Koz Ag
  • LOM payable production :  34 Koz Au ; 89 Koz Ag
  • LOM average gold grade:  3.31 grams per tonne (“g/t”); average silver grade:  9.65 g/t
  • Cash cost per Au oz, net of by-product credits:  $798
  • All-in sustaining cash cost per Au oz, net of by-product credits:  $843

After-Tax Economic Results of the Project:

Item Total LOM ($millions) Total LOM (per tonne)
Gross Payable $55.67 $146.03
TCs, Freight, Ins, Etc. ($1.05) ($2.75)
NSR $54.63 $143.28
Royalties ($1.37) ($3.58)
Operating Costs
Mining ($9.12) ($23.91)
Processing Costs ($12.92) ($33.90)
G&A and Head Office ($0.43) ($1.14)
Contingency ($2.25) ($5.89)
Operating Margin $28.54 $74.86
Capital Cost
Mine Capital ($0.54) ($1.41)
Pre-Production Costs ($0.81) ($2.14)
Contingency ($0.16) ($0.42)
Pre-Tax Cash Flow $27.03 $70.89
Pre-Tax NPV8% $24.36
Income Tax Provision ($2.14)
After Tax Cash Flow $24.89
After-Tax NPV8% $22.46

2016-2017 Exploration Activity

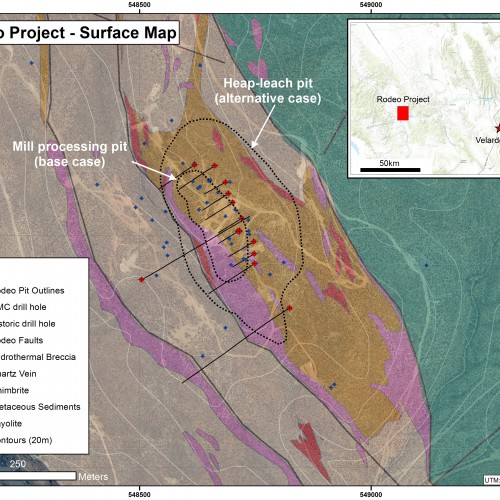

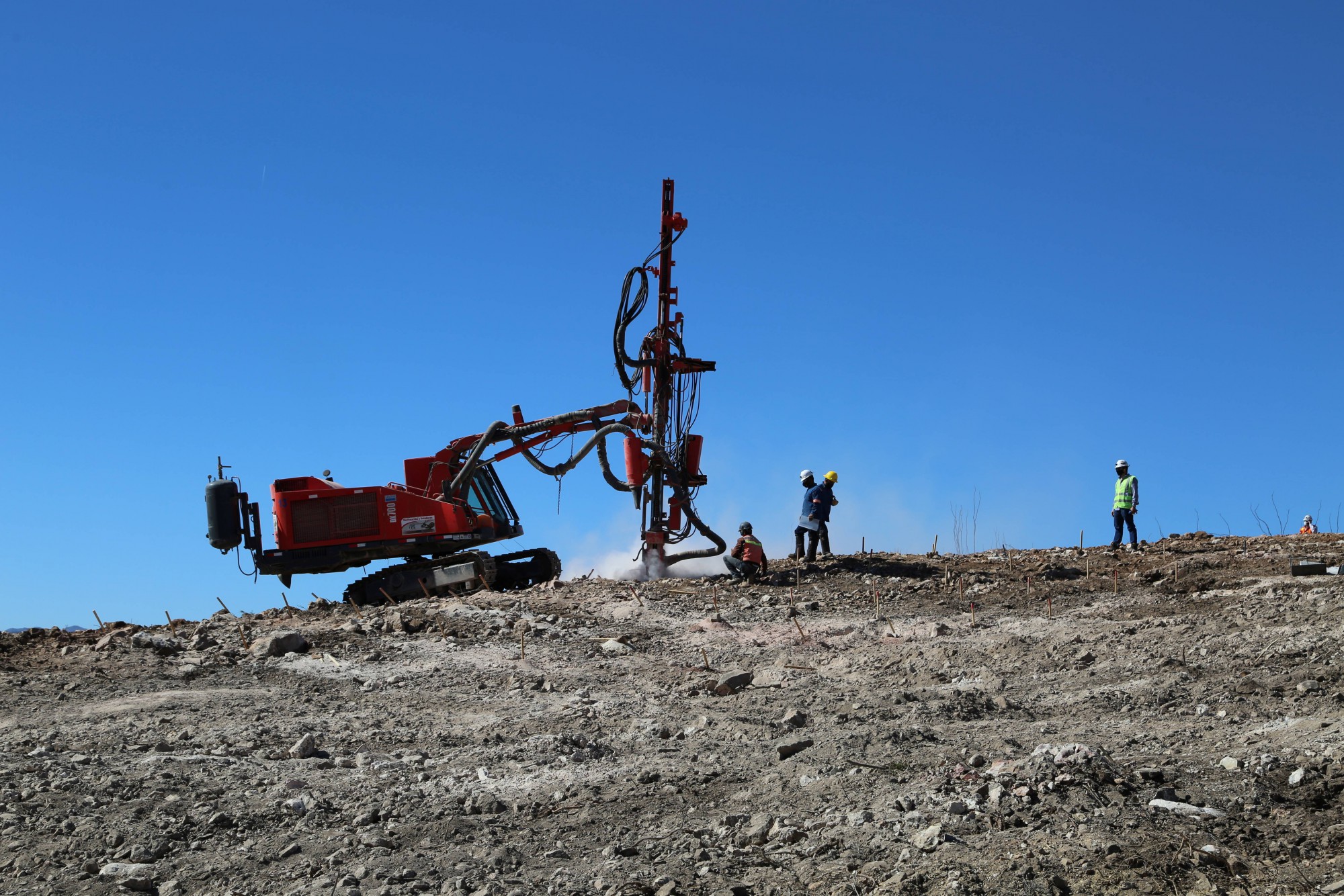

Golden conducted a 2,080-meter core drilling program at Rodeo in 2016. Partial results from the first round of drilling, released in September 2016, showed a gold and silver bearing epithermal vein and breccia system with encouraging gold and silver values over an approximate 50 to 70-meter true width. The system is exposed at the top of a northwesterly striking ridge and dips steeply to the northeast. The drill holes reported previously are spaced about 25 meters apart along 100 meters of the crest of the mineralized ridge. The drill holes are angle holes oriented at 55° to the southwest and cut the vein and breccia system at an angle of approximately 50°. Previous work has shown the mineralized system to be exposed at surface over about one kilometer of strike length.

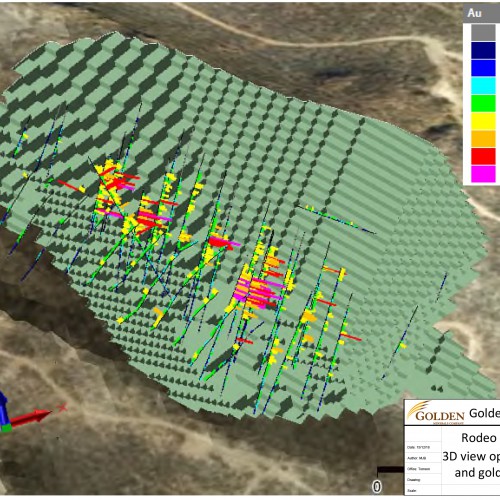

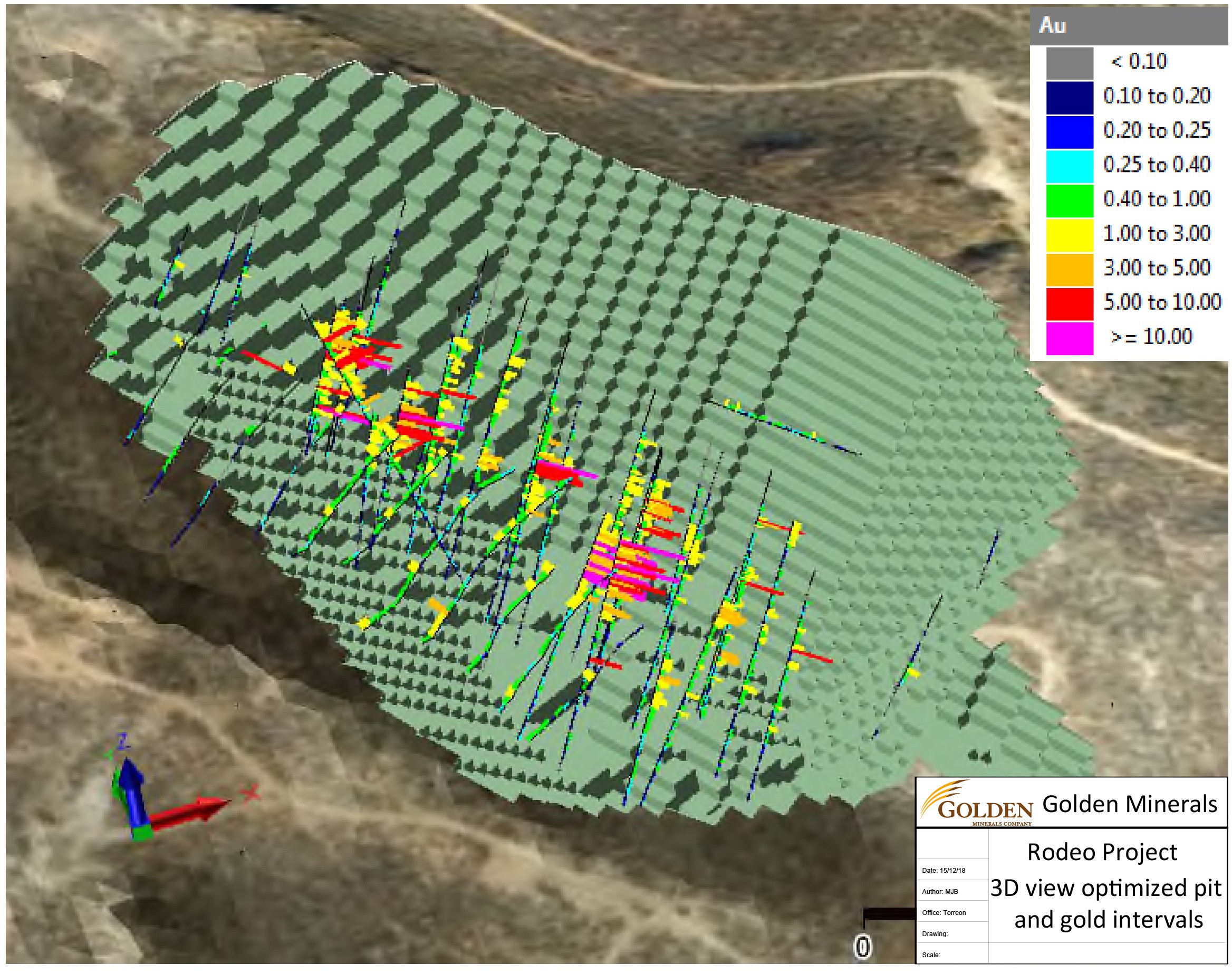

We completed the drill program in Q4 2016 and released a NI 43-101 compliant Technical Report in January 2017. The Technical Report included two resource estimates based on two processing scenarios and their respective cutoff grades and open-pit optimization models. The first operating scenario reflects a smaller amount of higher-grade material and estimated mineralized material of 0.4 million tonnes containing 3.3 g/t gold and 11 g/t silver for a total of 46,000 ounces of gold and 0.2 million ounces of silver. This scenario provides a potentially shorter time to processing with lower capital costs since we already own the mill, located within trucking distance of the Rodeo property.  The second operating scenario reflects a larger amount of lower grade material and estimated mineralized material of 3.6 million tonnes containing 0.8 g/t gold and 12 g/t silver. The second mineralized material estimate envisions a standalone heap leach operation, depending on leachability of the material and development and operating costs. We believe this material, as currently identified, could provide additional mined material for our Velardeña oxide mill following the completion of the Hecla lease, currently set to expire December 31, 2020.

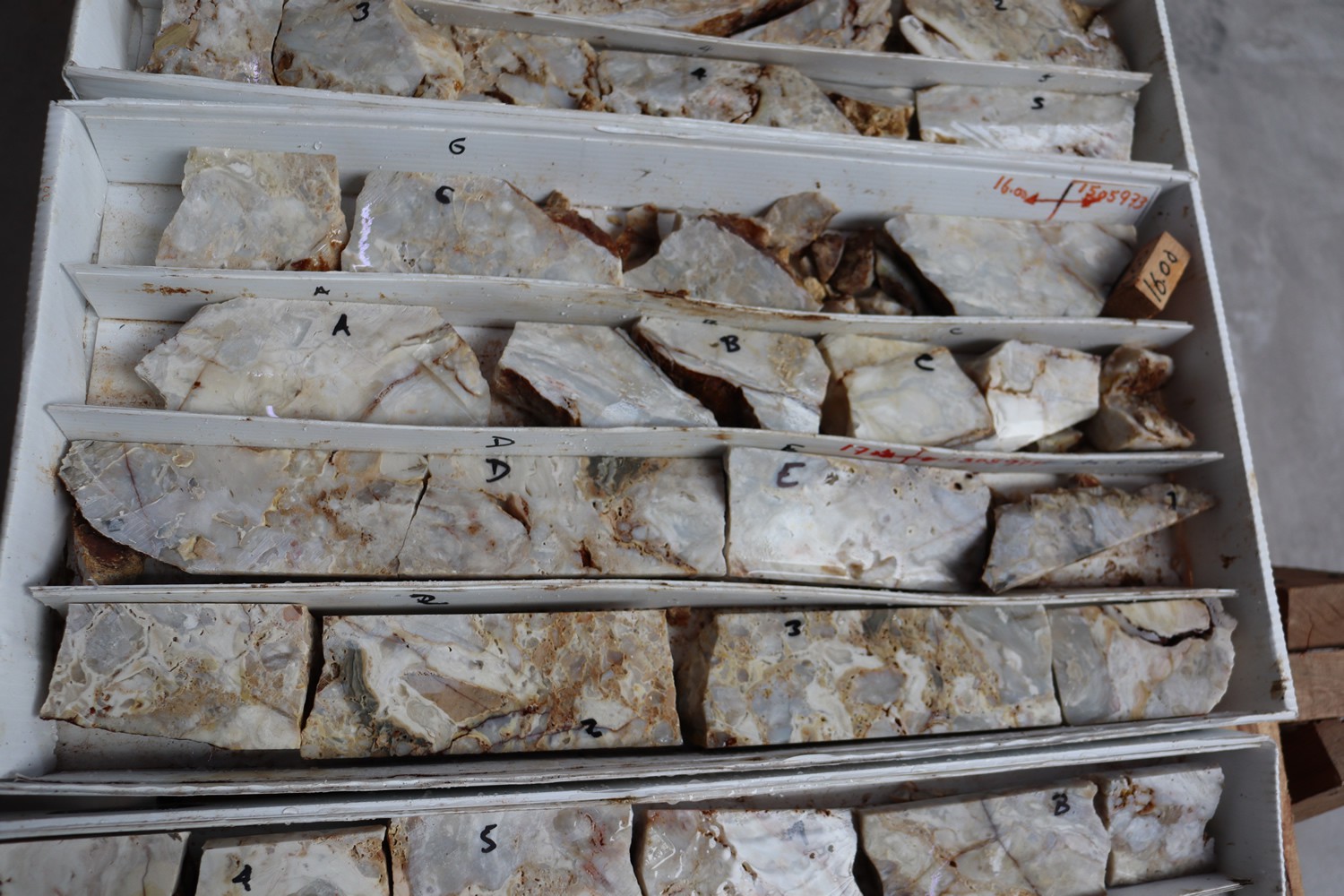

In initial test work conducted in 2017, we received confirmation of good gold and silver metallurgical recoveries for milled material in initial test work. Bottle roll cyanide leach testing of the high-grade samples resulted in gold extractions of 80 to 86 percent. Silver extractions ranged from 72 to 76 percent for all tests. Test work also indicates that the material is not suitable for gold and silver recovery by heap leaching.

See the Resources and Geology and Technical Reports pages for additional information about the Technical Report and its estimates.

Location, Access and Facilities

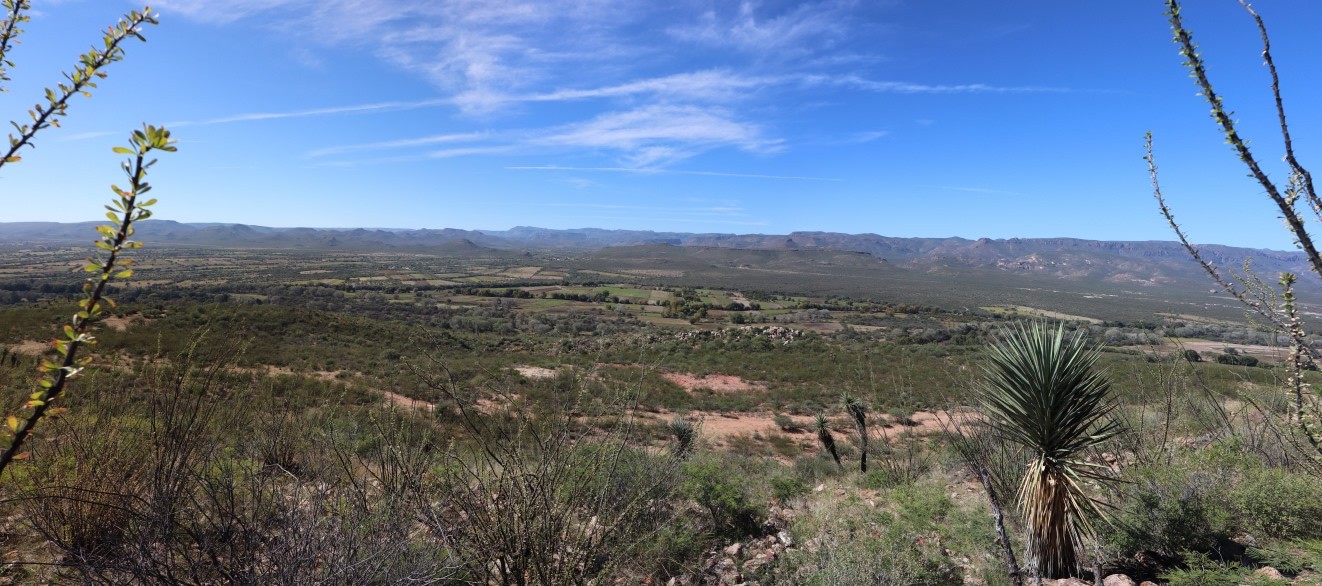

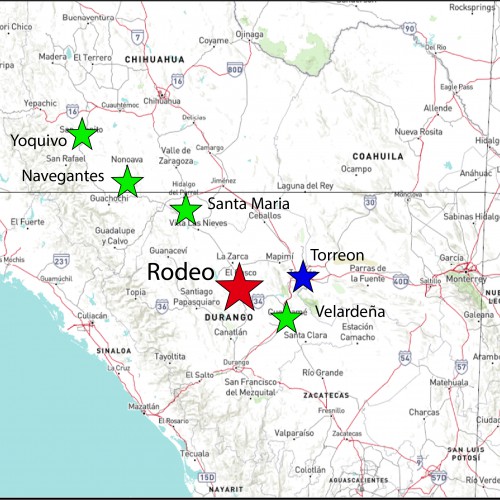

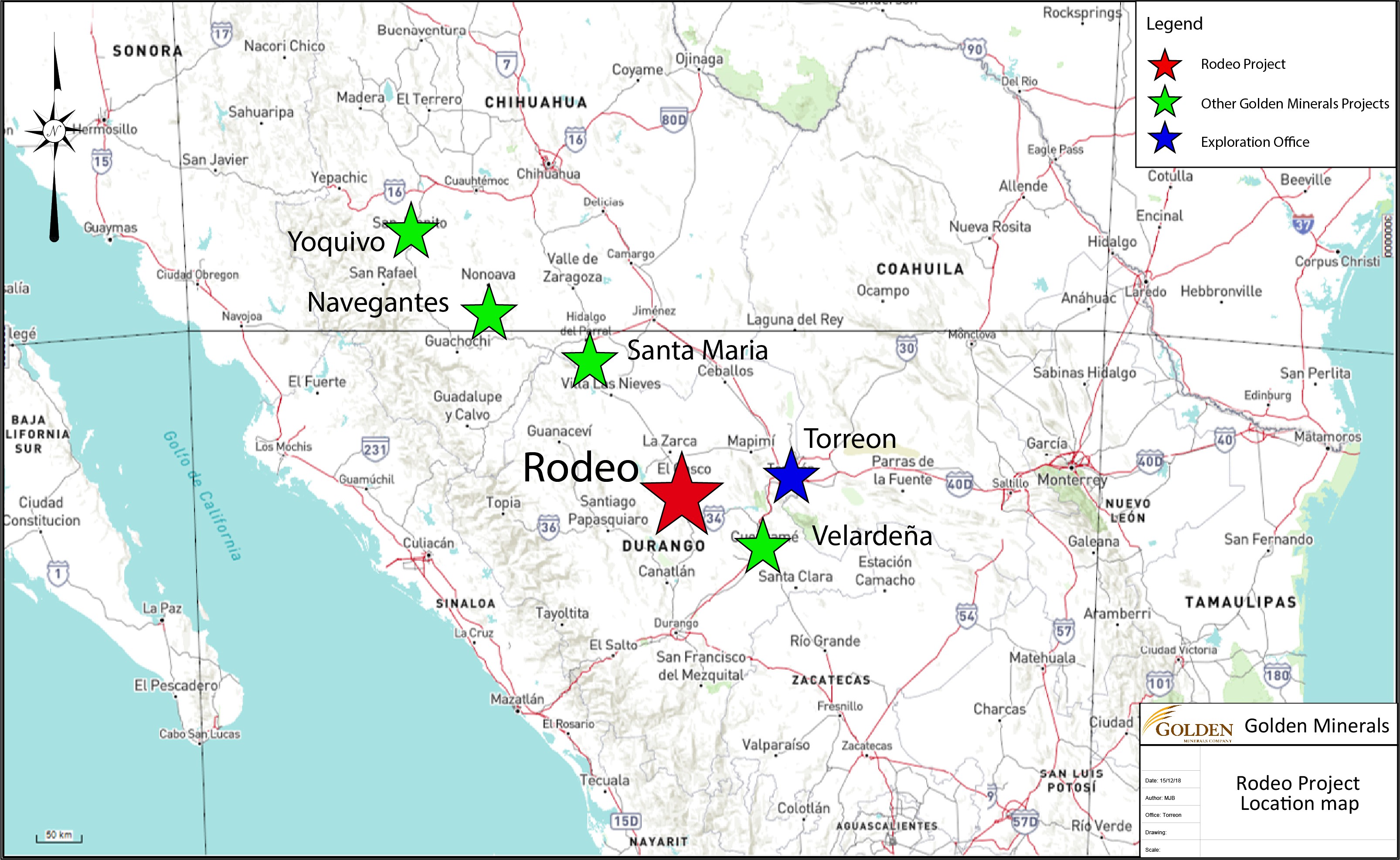

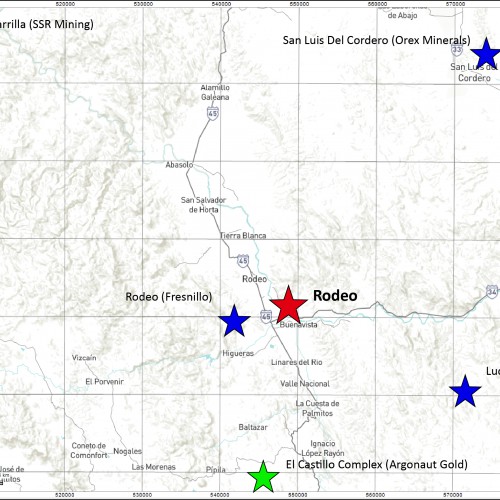

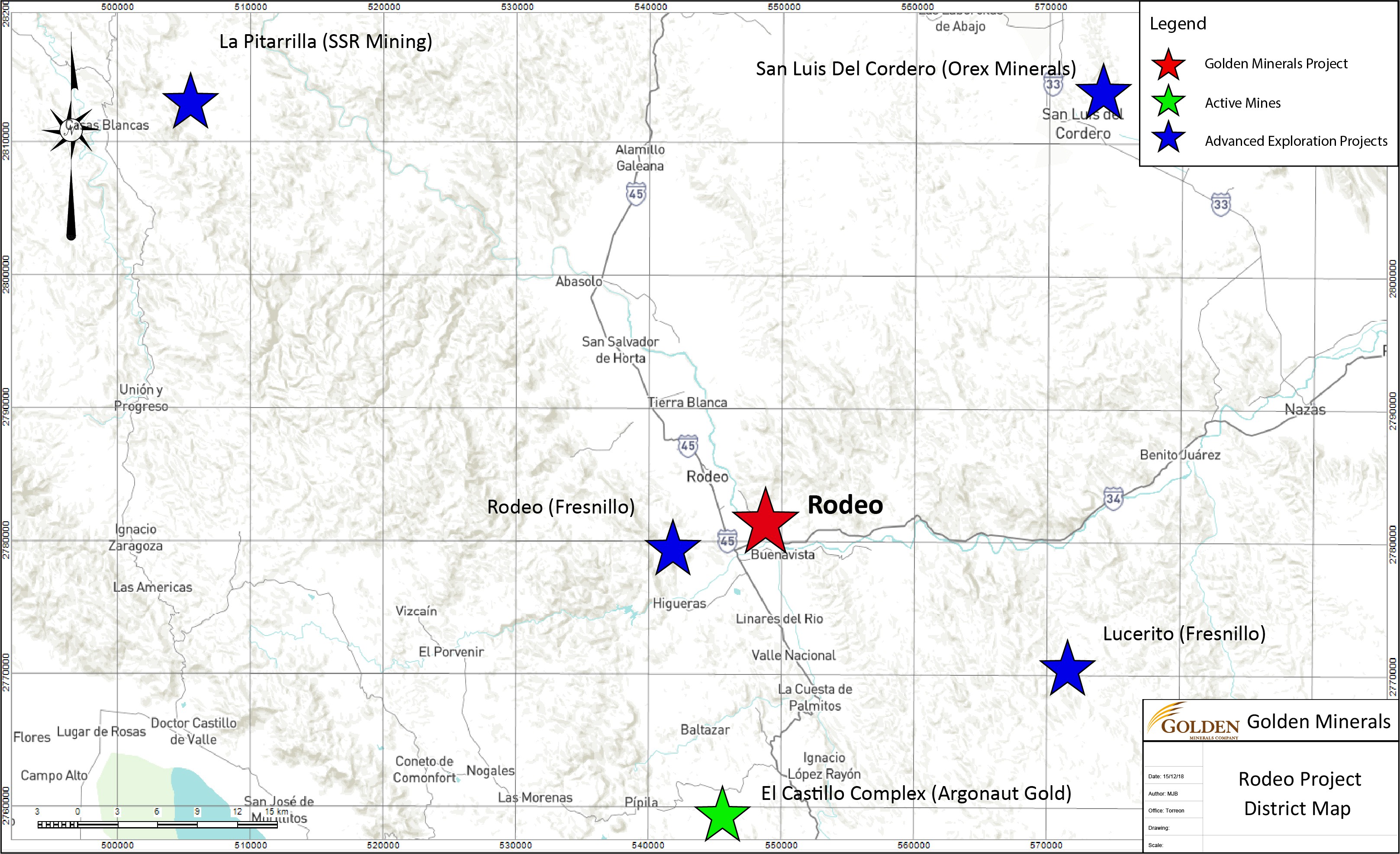

Rodeo is located two kilometers east of the town of Rodeo in Durango State, Mexico and is accessed by a short stretch of unpaved road from the Nazas-Rodeo highway. Basic amenities are available in the town of Rodeo. The property is located approximately 80 kilometers west of our Velardeña Properties -- within trucking distance of the oxide mill at Velardeña.

Title and Ownership

We own the Rodeo and Rodeo 2 claims covering 1,866 hectares of land located 80 kilometers west of our Velardeña Properties in Durango State, Mexico. Golden acquired the Rodeo property subject to a royalty interest (due to La Cuesta International) in 2015.

NI 43-101 Compliant Mineral Resource Estimate

Rodeo Tonnes
(M)
Silver
(M oz)
Gold
('000 oz)
Gold Eq.
('000 oz)
Silver
g/t
Gold
g/t
Indicated 0.4 0.2 46.0 47.8 11 3.3
  • Source:  Tetra Tech NI 43-101 Technical Report, January 26, 2017
  • Gold equivalents calculated at 72:1
  • For additional details see the Technical Reports page

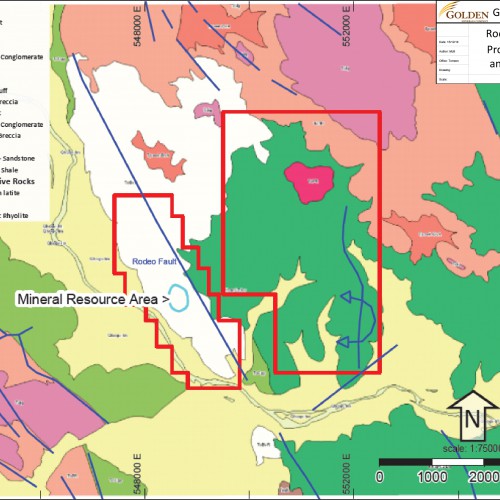

Geology & Mineralization

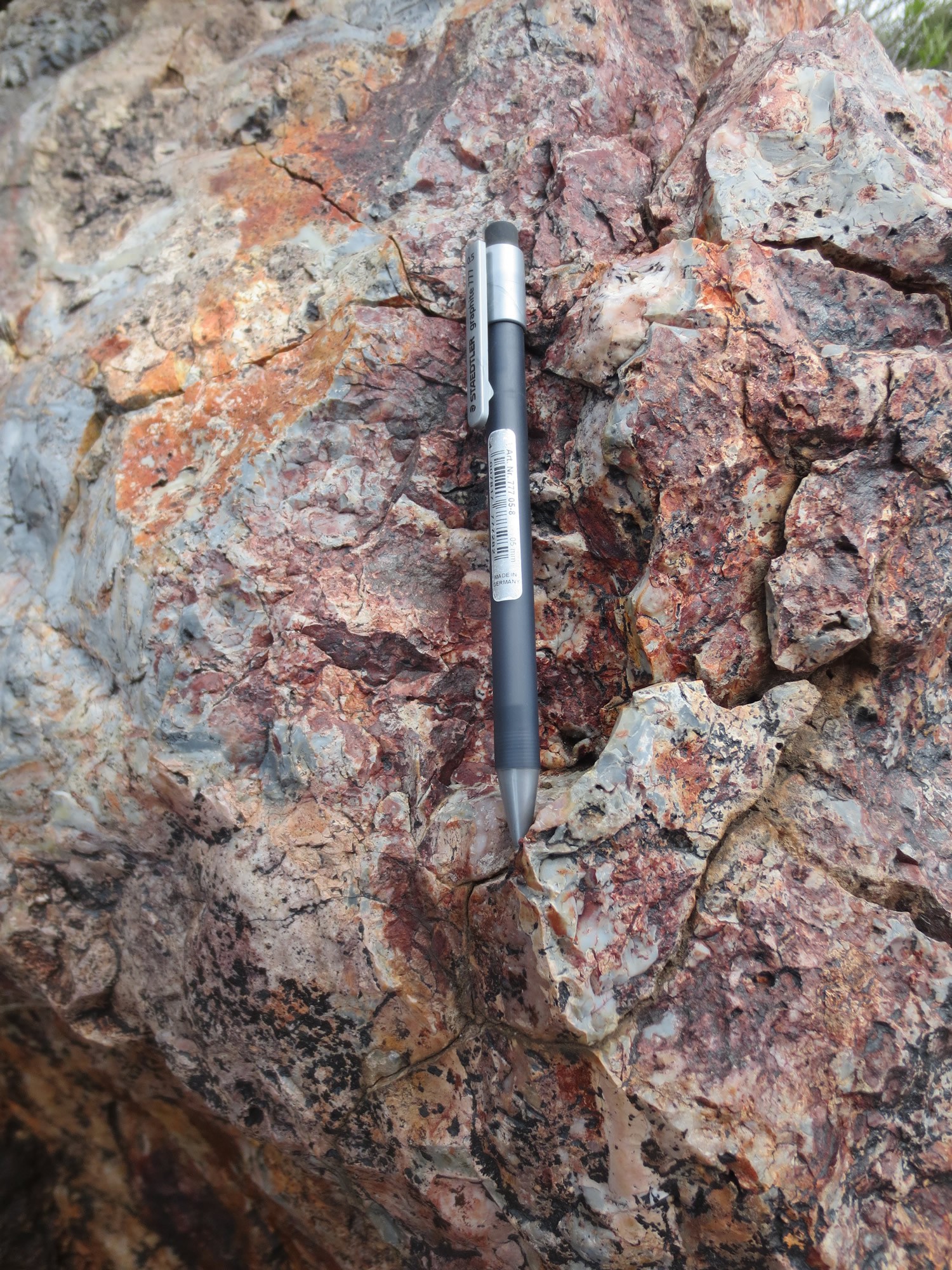

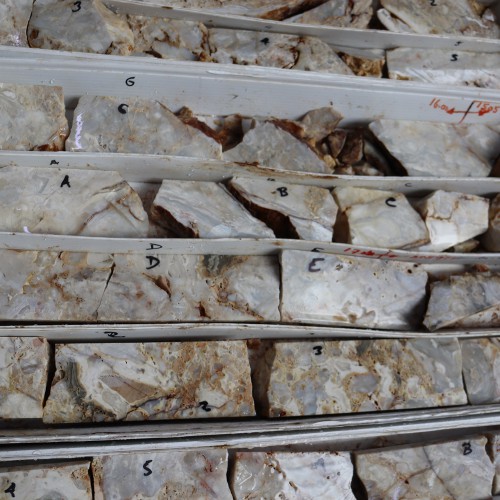

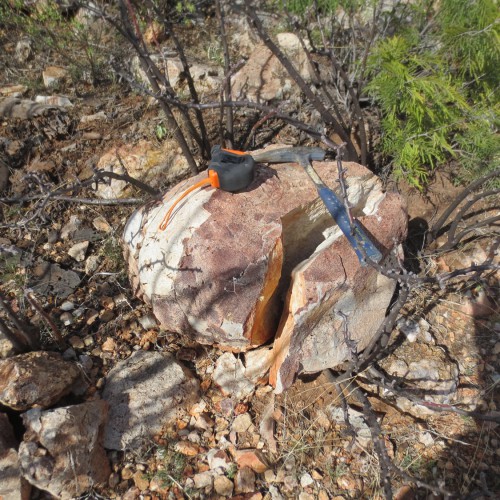

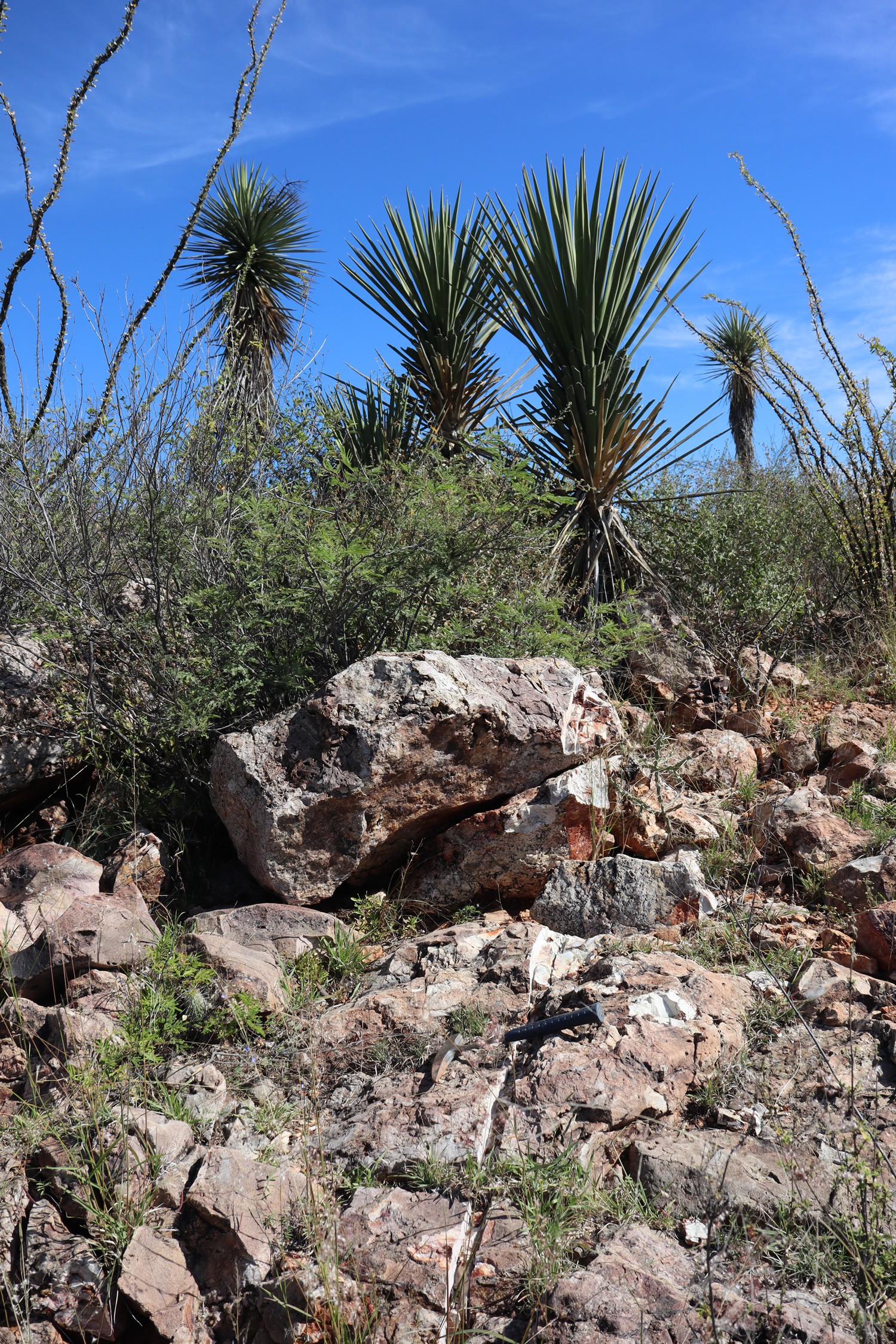

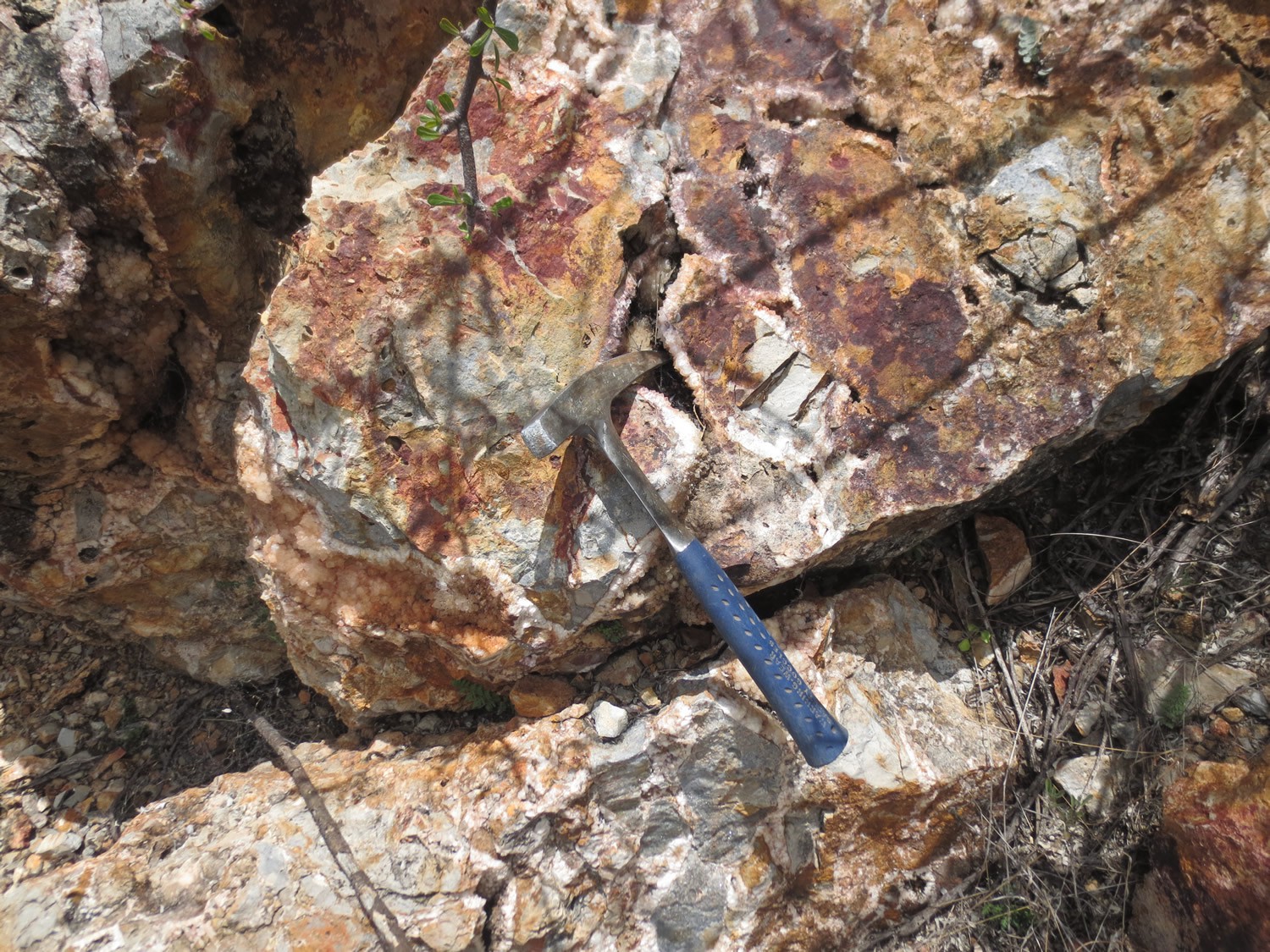

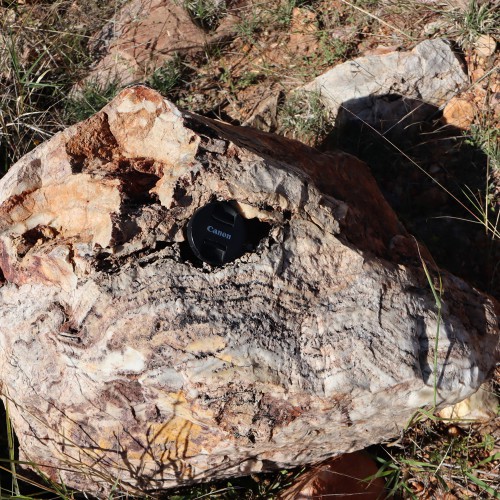

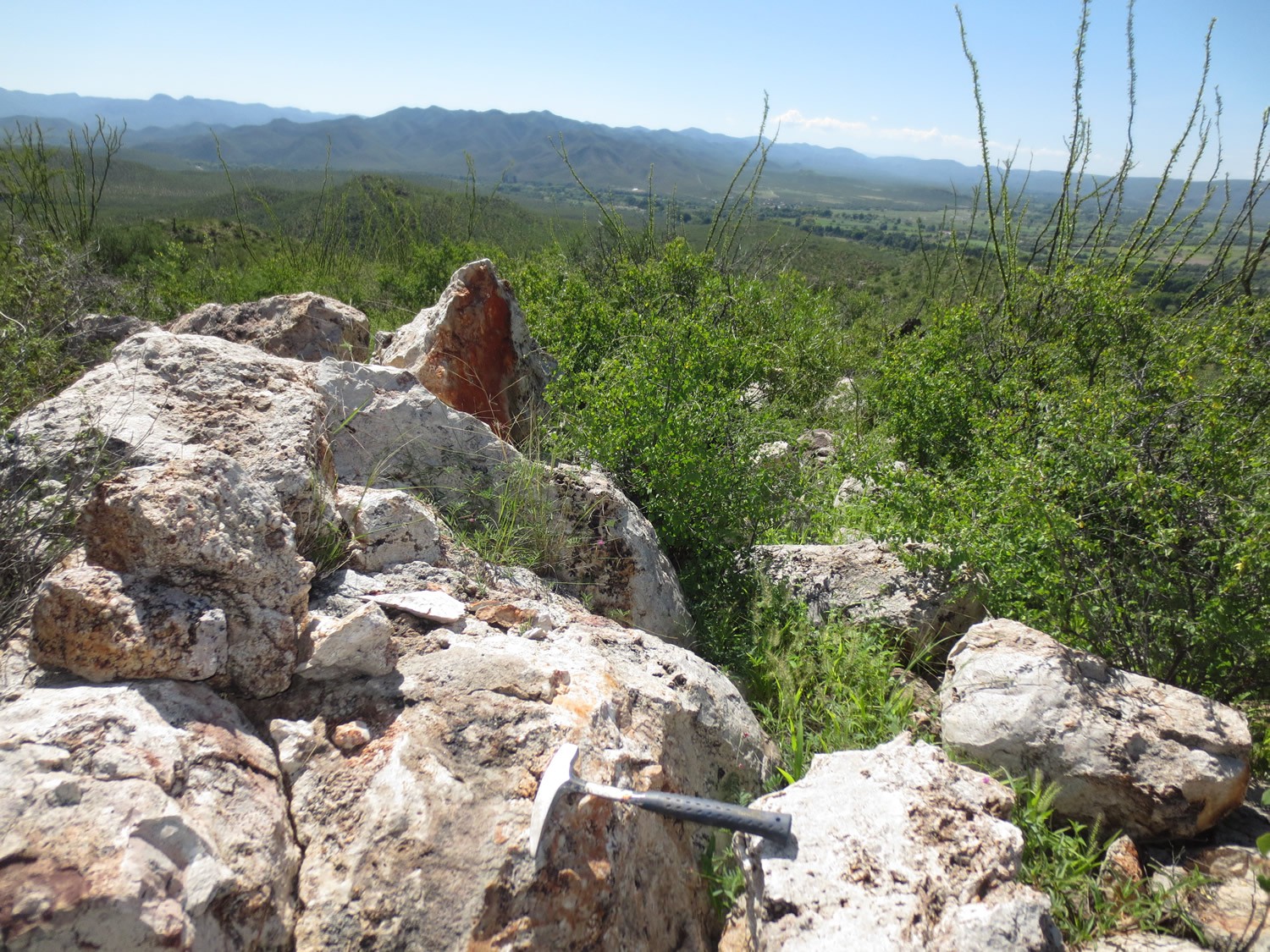

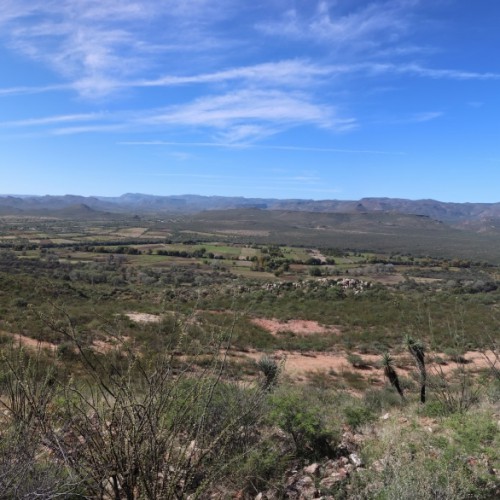

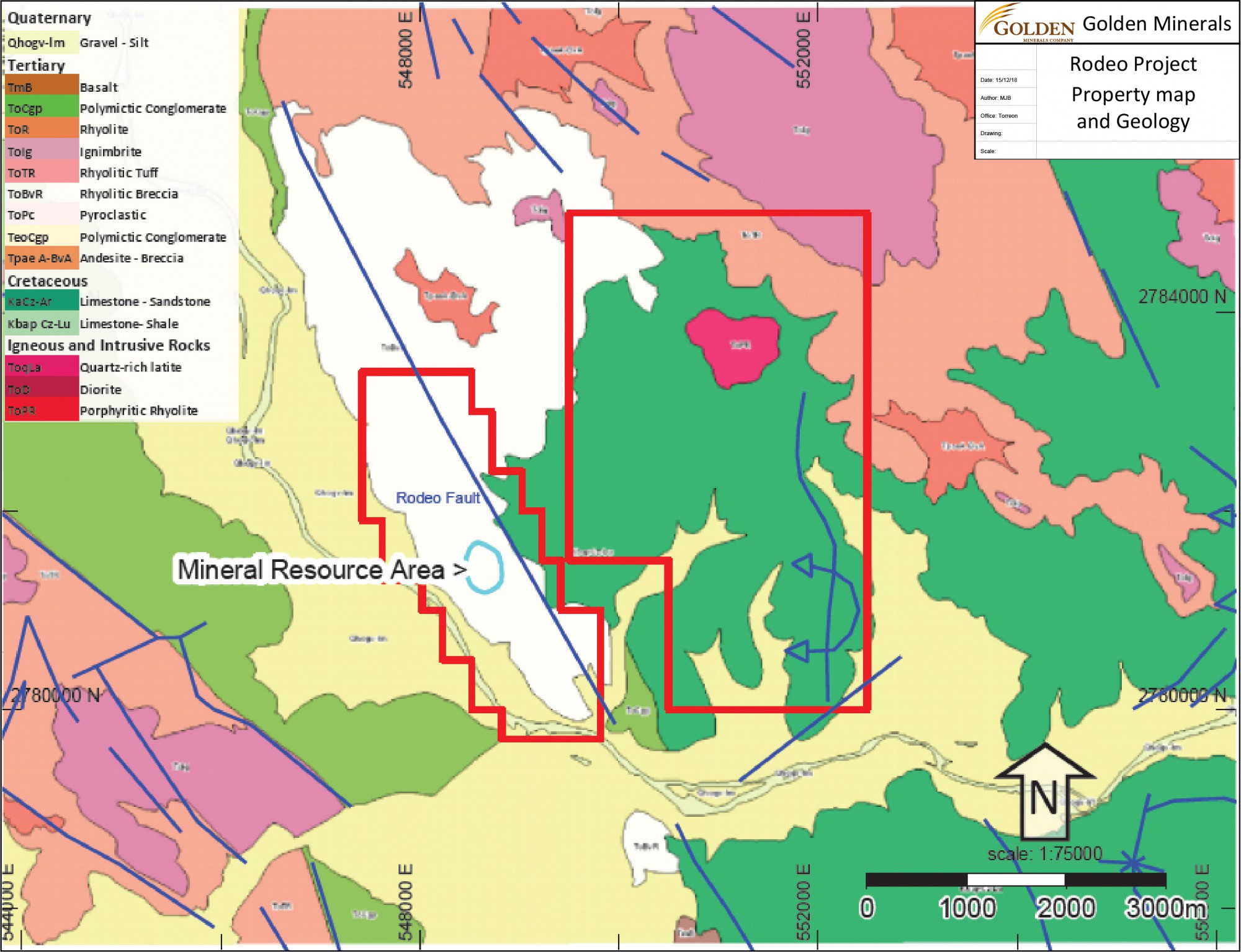

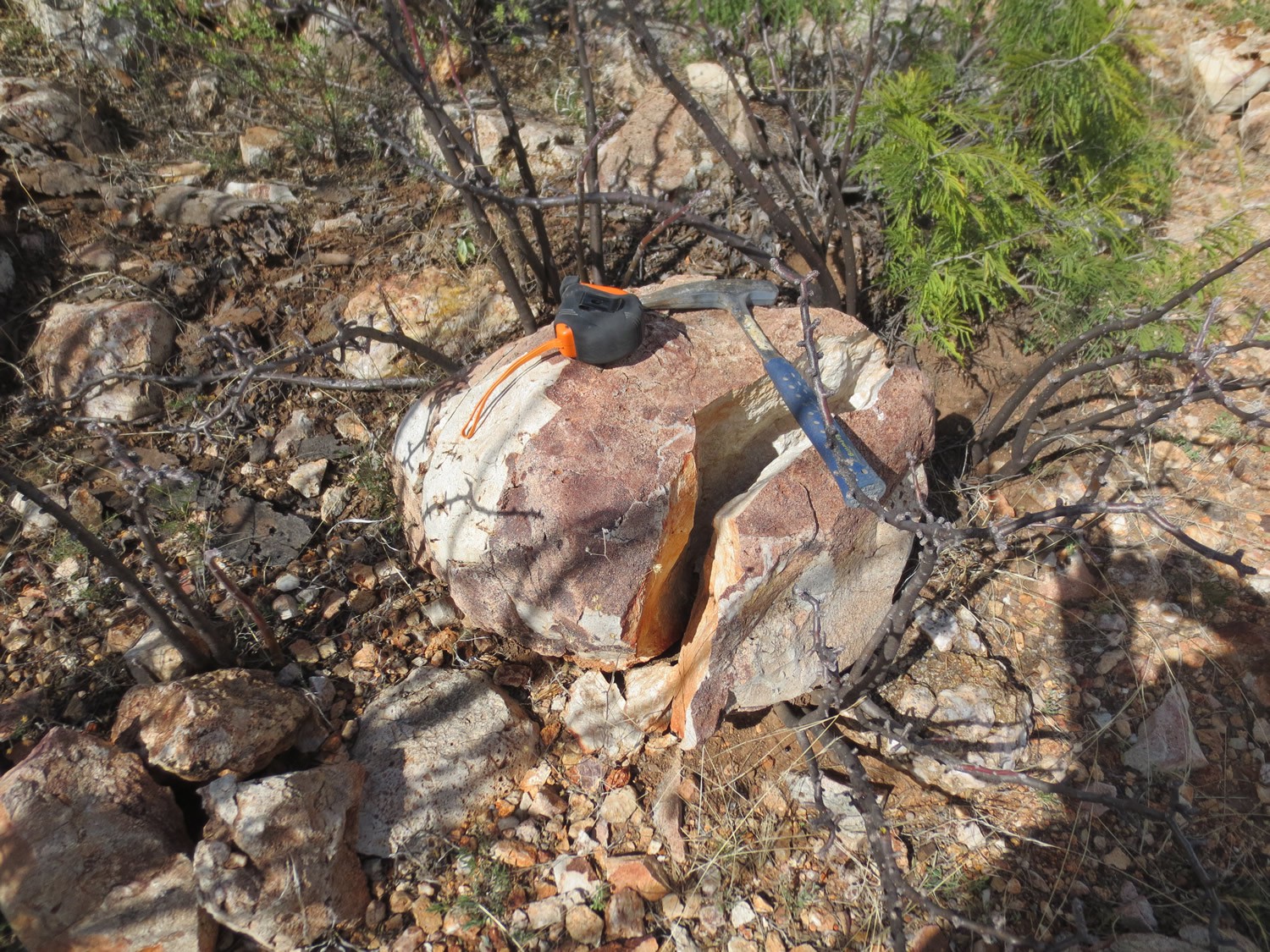

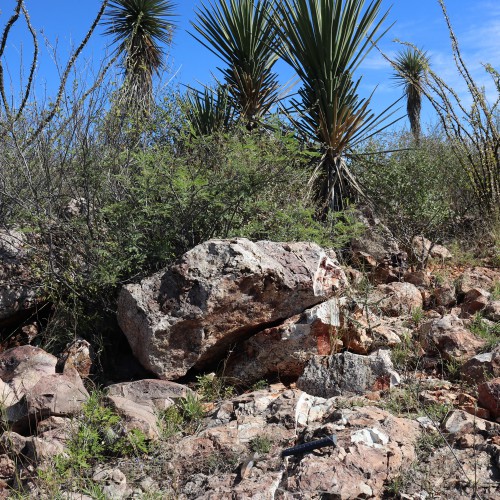

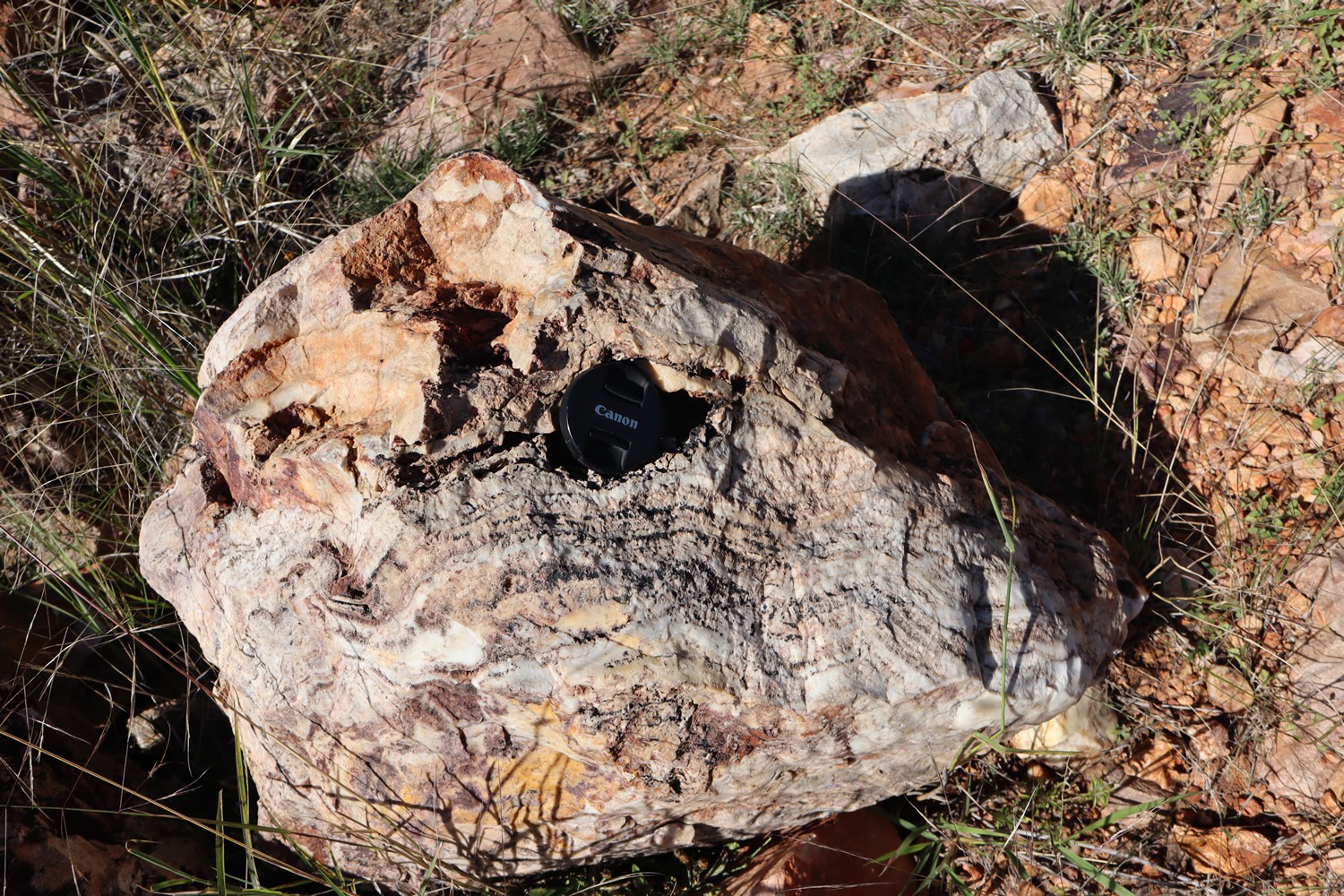

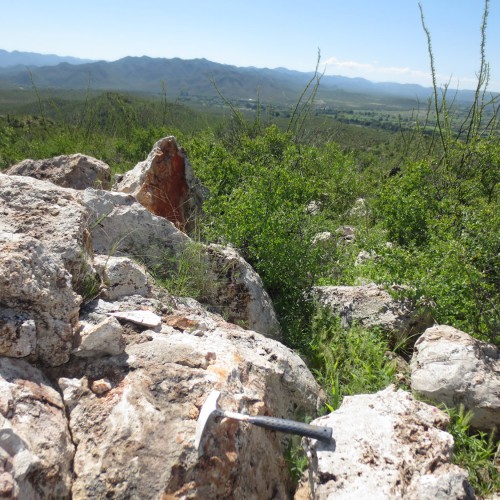

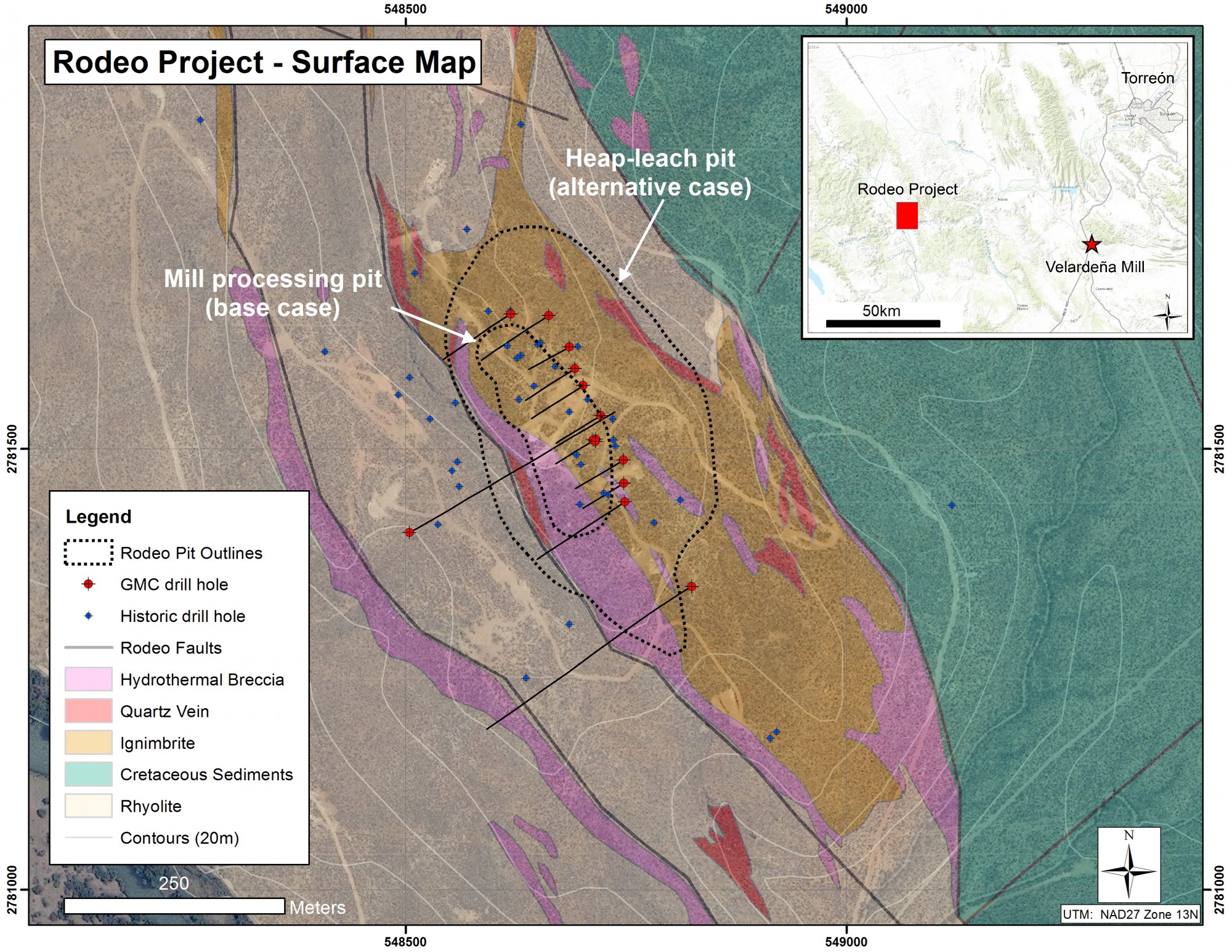

Gold and silver mineralization at Rodeo is hosted by Tertiary felsic volcanic rocks in fault contact with Cretaceous Mescalera group calcareous sedimentary rocks.  Precious metal mineralization is low sulfidation epithermal in character and associated with chalcedonic quartz veins and breccias.  Strongest gold mineralization outcrops near the top of a north-south trending ridge covering a strike distance of about 300 meters and a width of around 200 meters.  The near-surface and outcropping setting presents an opportunity to exploit the deposit by low strip ratio open pit methods.  The only sulfide observed at Rodeo is fine-grained pyrite which is disseminated in quartz.

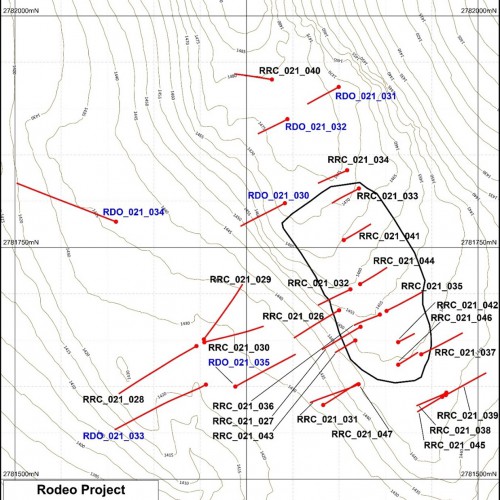

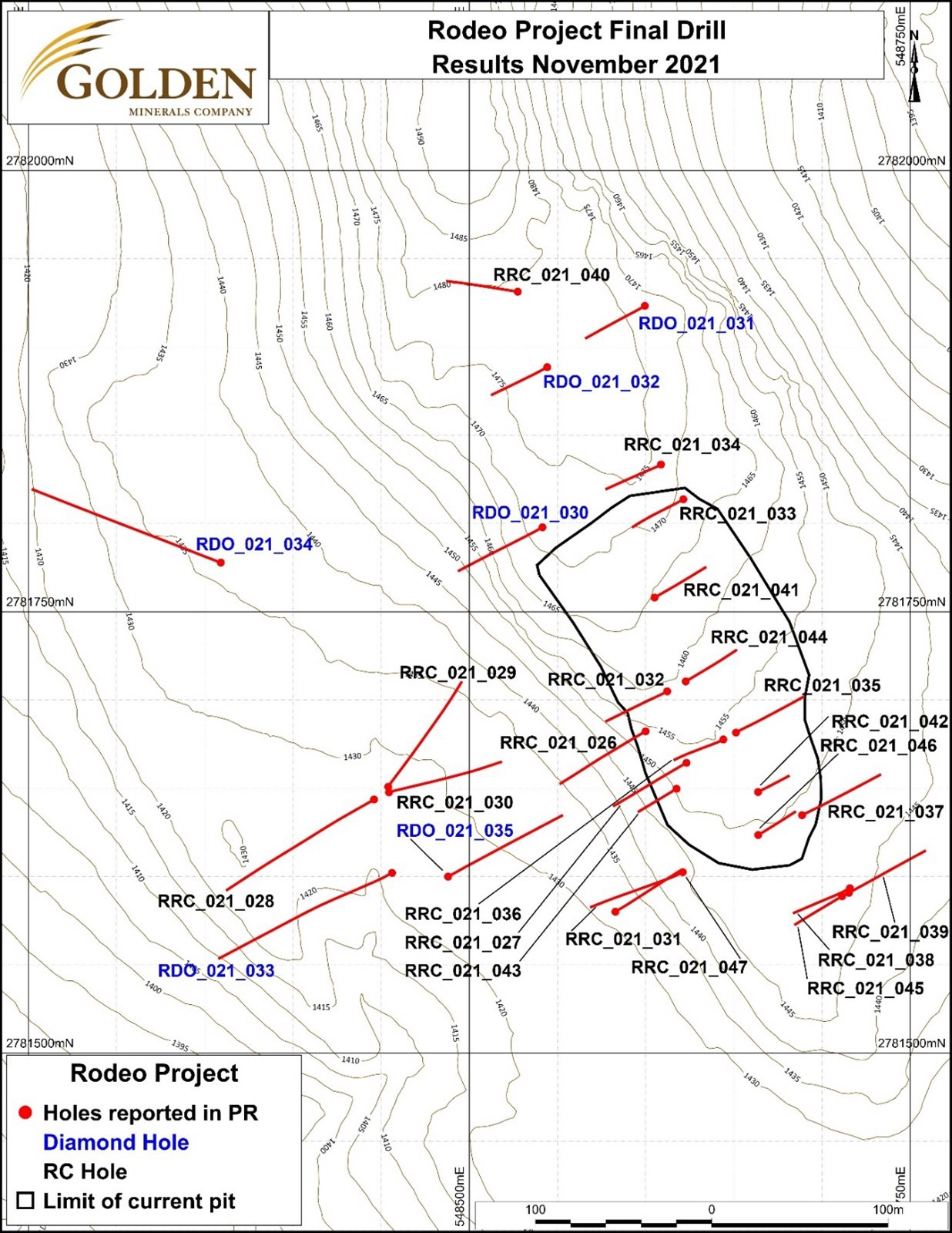

Rodeo Drill Results

Rodeo 2016 Drilling Results
